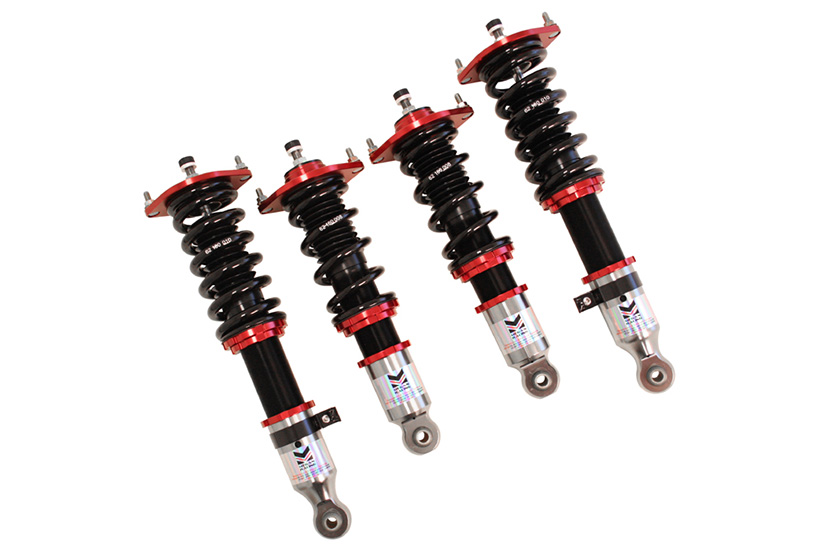

Megan Racing Coil-Over Dampers are the ultimate upgrade to your track or street car. Featuring 32 levels of damper force adjustment, separate spring perch height and shock length adjustment allowing you to retain full suspension stroke and to fine tune your suspension characteristics. These damper kits are then perfectly matched with front and rear Pillow Ball upper mounts, including camber plates integrated with the upper Pillow Ball mounts on strut-type suspension applications.

Compression and rebound settings are easily adjusted through a single damper adjustment knob which is built-in at the top of the damper mount for easy access. Adjustments are simple to tune according to your style of driving and desired comfort level whether you are a professional certified mechanic or an automotive enthusiast with amateur mechanical skills. All of our dampers are capable of handling a +2kg/mm or -2kg/mm change in spring rates to further tune your suspension to your desired handling characteristics.

Height adjustments are made with separate CNC-Machined locking spring perches for accuracy and smooth adjustment with separate damper shock length adjustment to retain full-stroke and allows for precision suspension tuning. The wide range of allowable ride-height adjustment allows for a conservative drop to more aggressive ride heights for an aggressive stance, or to fine tune your suspension for the circuit to gain full potential of your vehicle's handling capabilities.

The quality and durability of the Megan Racing Damper kits are unmatched. Made of extremely durable Steel and featuring springs that are constructed of SAE-9254 Cold-Wound Steel which are then tested over 500,000 times by compression inspection. With deformation less than 5% and high strength sophisticated surface coating, we stand by our product with our strong warranty.


SPECIFICATIONS & FEATURES:

APPLICATION:
Mazda Miata MX-5 NA6/NA8/NB1/NB2 1989-2005

SPRING RATES:
F: 10 kg/mm
R: 8 kg/mm

- 32 Levels of Damper Force Adjustment

- Pillow Ball Upper Mounts

- Rubber Dust Boots

- Adjustable Ride Height

- Aggressive Spring Rates

- Single-Cylinder Design

- Aluminum Brackets

32 Levels of Adjustment:

1-8: Suggested for track use.
9-16: Suggested for mountain/aggressive use.
17-32: Suggested for common street use.

SUSPENSION TUNING NOTES:

Suspension setup is optimized at 4 3/4" F 4 7/8 to 5.0" Pinch Weld Ride Height. At this point, full shock stroke is maximized.

With included 560/448 spring rates at 12.0"/12.25" hub to fender heights, we recommend using shortened bumpstops. The original stops are 35mm. We recommend shortening the front bumpstops, cutting them in half and using the upper half in the front, and using the conical lower half in the rear. Increasing to a 12k front spring rate allows the use of 12-18mm long bumpstops up front.

RECOMMENDED SETUP/INFO:
http://www.meganracing.com/tech/updates.asp?id=95&subject=Track%20Testing:%20%20MR-CDK-MMX590%20Mazda%20Miata%20coil-over%20damper%20kit


- All coil-over damper kits come with 1 year manufacturer-defect warranty.

- All Hardware is Included



- Fits 1990-2005 Mazda Miata MX-5
