TECH SPECS



Mishimoto is the world leader in performance cooling for the Automotive, Truck, Jeep, and Powersports communities. Watch to learn about everything we do and who we are!

Overall Size
Length: 23.6" (600mm)
Height: 18.0" (456mm)
Width: 3.5" (88.1mm at center)

CFM
1850

Fits
87-95 Jeep Wrangler (YJ)
97-06 Jeep Wrangler (TJ)
04-06 Jeep Wrangler Unlimited (TJ)

Engine Codes
2.5L I-4 Engine
4.0L I-6 Engine

Chassis Codes
YJ
TJ

Purchase Includes
-Aluminum Fan Shroud
-(1) 16" Mishimoto Slim Electric Fan
-(1) Aluminum Overflow Reservoir Bracket*
-(1) Aluminum Power Steering Reservoir Bracket*
-Hardware Kit
-Optional: Mishimoto Fan Controller, 1/8" NPT or Probe
-Mishimoto Lifetime Warranty

*Overflow Reservoir Bracket is used for 1997–2006 4 and 6 cylinder applications

*Power Steering Bracket 1997–2006 4 cylinder applicationsAdditional Hardware (if purchasing optional Fan Controller)
-(1) Mishimoto Fan Controller
-(1) Temperature Sensor (1/8" NPT or Probe)
-(1) In-Line Fuse Holder
-(2) Butt Splice
-(2) 0.25" Wide Quick-Disconnect Terminal
-(2) 3/8" Stud Size Ring Terminal
-(1) 3/8" Black Wire Cover, 5' Length
-(1) 3/16" Black Shrink Wrap, 6" Length
-(1) 1/4" Black Shrink Wrap, 2" Length
-(3) 7.5" Black Zip-Tie

Note
This fan shroud is compatible with stock radiator and Mishimoto’s Jeep Wrangler Performance Radiator

This fan shroud is compatible with stock overflow tank and power steering reservoir.

Electric fan comes attached to the shroud.

Stock plastic fan shroud components must be removed for installation.

PRODUCT ENGINEERING

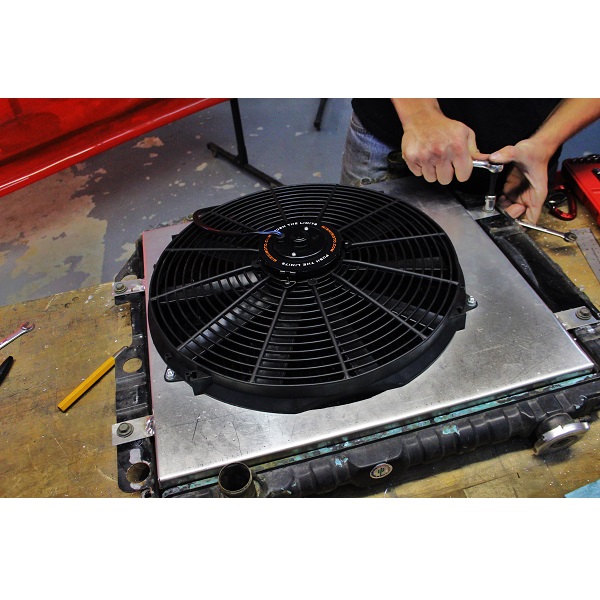

DESCRIPTIONKeep your Jeep Wrangler YJ and Wrangler TJ cool with the Mishimoto Performance Fan Shroud Kit! This direct-fit electric fan shroud setup completely eliminates the stock mechanical fan. The fan shroud mounts directly to the stock radiator and Mishimoto Jeep Wrangler Performance Radiator and includes a 16 High-Flow Electric Fan that produces over 1850 cfm of airflow.

Optionally, this kit can include a Mishimoto Adjustable Fan Controller Kit, which will provide the user with total control over coolant temperatures. The Engineers at Mishimoto designed drain ports on the bottom of the shroud to allow for water drainage during off-road conditions. The Mishimoto Jeep Wrangler YJ and TJ Fan Shroud Kit includes all hardware and brackets required for installation and is compatible with the stock expansion tank and power steering reservoir.

Whether you have a 2.5L I-4 or 4.0L I6, all brackets are included with this kit so you don’t need to order additional components! This fan shroud has a brushed finish that provides a subtle accent for your engine bay. As with all our performance Wrangler parts, this fan shroud kit includes the Mishimoto Lifetime Warranty you know and trust.

LIFETIME WARRANTY


Mishimoto Automotive (“Mishimoto”) warrants its products under this lifetime limited warranty policy (“Warranty Policy”). This Warranty Policy applies solely to: (i) Mishimoto Products purchased directly from Mishimoto or Mishimoto authorized dealers (each a “Mishimoto Product” and collectively, the “Mishimoto Products”) and (ii) the original purchaser of such Mishimoto Product (“Purchaser”). This Warranty Policy is non-transferable and all claims under this Warranty Policy must be accompanied by the original sales receipt. The terms and conditions of this Warranty Policy are subject to change by Mishimoto at any time without notice.

For our complete warranty policy, please click here.


Direct fit for the 1987–2006 Jeep Wrangler TJ/YJ with 2.5L/4.0L engine
Includes 16" High-Flow Electric Fan that provides over 1850 cfm of airflow
Optional fan controller provides complete control of coolant temperatures at idle
Fits with both stock and Mishimoto Jeep Wrangler Performance Radiator
Accommodates stock coolant overflow tank & power steering reservoir
Drain ports on bottom of shroud allow for water drainage during off-road conditions
Slim profile with a maximum thickness of just 3.5"
Brushed aluminum finish
Includes all mounting hardware for installation
Mishimoto Lifetime Warranty
Expected Ship date: 8/26/15
