OVERALL SIZE
22.8" x 25.5" x 3.2"

CORE SIZE
19.2" x 20.7"

ROWS
2

INLET
1.5"

OUTLET
1.7"

CORE THICKNESS
1.7"

TANK WALL THICKNESS
.08"

DRAIN PLUG THREAD SIZE
M12 x 1.5

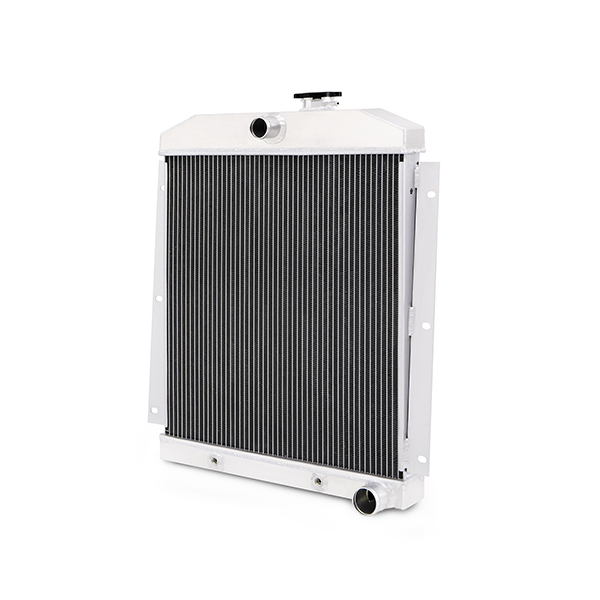

All-aluminum construction provides greater heat and pressure tolerance, better heat dissipation, increased durability, improved cooling efficiency, and improved structural rigidity
2-Row Core
Increased coolant capacity directly results in better cooling efficiency and reduced engine temperatures
Includes an internal transmission cooler to provide optimal fluid temperatures for automatic transmissions
Billet aluminum fill neck
Brazed aluminum core with TIG-welded end tanks
Includes Magnetic Drain Plug
Mishimoto Lifetime Warranty

Read More...

PURCHASE INCLUDES
Mishimoto Radiator
Mishimoto Radiator Cap
Magnetic Drain Plug
Mishimoto Lifetime Warranty

FITS
1947-1954 Chevrolet 3100 Series 3.5L/3.9L

1947-1954 Chevrolet Suburban (3.5L/3.9L L6)

1947-1954 Chevrolet Panel Truck (3.5L/3.9L L6)

Engine Codes
216ci (3.5L) L6
235ci (3.9L) L6

DPI
5100
