TECH SPECS



Mishimoto is the world leader in performance cooling for the Automotive, Truck, Jeep, and Powersports communities. Watch to learn about everything we do and who we are!

Purchase Includes
(1) Mishimoto Intercooler
(2) AC Condenser Brackets
(7) M6 x 1.0 x 16mm Bolts
(4) M6 x 1.0 x 10mm Bolts and Washers
Mishimoto Lifetime Warranty

Construction
Bar/Plate

Overall Size
47.2" x 17.5" x 10.9"

Core Size
35.91" x 16.65"

Inlet
3.66" (93mm)

Outlet
3.66" (93mm)

Core Thickness
3.00"

Tank Wall Thickness
4mm

Fits
1994-2002 Dodge Ram 2500 w/ 5.9L Cummins Engine (12V and 24V)
1994-2002 Dodge Ram 3500 w/ 5.9L Cummins Engine (12V and 24V)

Installation Torque Specs
27 in-lbs (3N*M) recommended for all t-bolt and constant tension t-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4N*M). Do not exceed the maximum torque rating of 35 in-lbs (4N*M).

Note
Requires slight bending of truck body for installation.

PRODUCT ENGINEERING

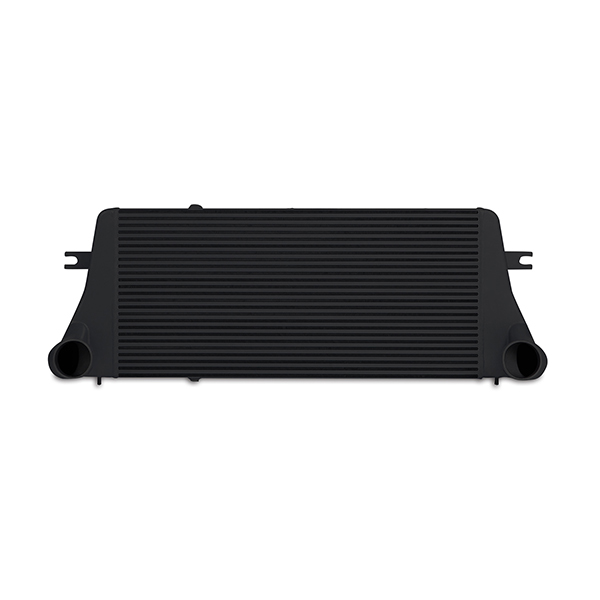

DESCRIPTIONMishimoto has expanded the Cummins performance parts line to include a performance intercooler for the 1994-2002 Dodge 5.9L Cummins. High intake and exhaust gas temperatures can reduce performance and potentially cause engine damage. Protect your 12v or 24v by upgrading to the Mishimoto 5.9L Cummins intercooler. This intercooler is precision engineered with durable cast aluminum end tanks and an efficient bar-and-plate core, all designed for improved airflow, lower intake temperatures, and improved EGTs. The Mishimoto Cummins intercooler will support substantial boost pressure in your stock or highly modified truck.

The Mishimoto Cummins intercooler features a 47% increase in core volume and is 50% thicker compared to the factory cooler. Offered in Sleek Silver or Stealth Black, the Mishimoto 5.9L Cummins intercooler is designed to work with our 5.9L Cummins Intercooler Pipe and Boot Kit. Like all of our Cummins performance parts, this kit includes the Mishimoto Lifetime Warranty.

LIFETIME WARRANTY


Mishimoto Automotive (“Mishimoto”) warrants its products under this lifetime limited warranty policy (“Warranty Policy”). This Warranty Policy applies solely to: (i) Mishimoto Products purchased directly from Mishimoto or Mishimoto authorized dealers (each a “Mishimoto Product” and collectively, the “Mishimoto Products”) and (ii) the original purchaser of such Mishimoto Product (“Purchaser”). This Warranty Policy is non-transferable and all claims under this Warranty Policy must be accompanied by the original sales receipt. The terms and conditions of this Warranty Policy are subject to change by Mishimoto at any time without notice.

For our complete warranty policy, please click here.


Direct fit for 12v and 24v 1994-2002 Dodge 5.9L Cummins
Intercooler features all-aluminum cast end tanks
Intercooler has 47% increase in core volume
3" core is 50% thicker than factory
Air diverter in hot-side end tank reduces turbulence and evenly distributes airflow across core
Reduces turbo stress and extends life
Intercooler available in Sleek Silver and Stealth Black
Fits with Mishimoto Dodge 5.9L Cummins Performance Aluminum Radiator
Mishimoto Lifetime Warranty
