TECH SPECS



Mishimoto, the world leader in performance cooling products, is proud to introduce the intercooler kit for the 1994-2002 Dodge 5.9L Cummins. ...

Intercooler Construction
Bar/Plate

Overall Size
47.2" x 17.5" x 10.9"

Core Size
35.91" x 16.65"

Inlet
3.66" (93mm)

Outlet
3.66" (93mm)

Core Thickness
3.00"

Tank Wall Thickness
4mm

Silicone Boots with DuraCore™
Boot 1: 3.00", 3.60"
Boot 2: 3.00", 3.60"
Boot 3: 3.00"
Boot 4: 3.00"

Constant-Tension T-Bolt Clamps
(6) 3.25" Constant-Tension T-Bolt Clamps
(2) 4.0" Constant-Tension T-Bolt Clamps

Aluminum Pipes Construction
Polished AluminumDiameter
3.0"

Fits
1994-1998 Ram 2500 (5.9L 12V)
1994-1998 Ram 3500 (5.9L 12V)
1998-2002 Ram 2500 (5.9L 24V)
1998-2002 Ram 3500 (5.9L 24V)

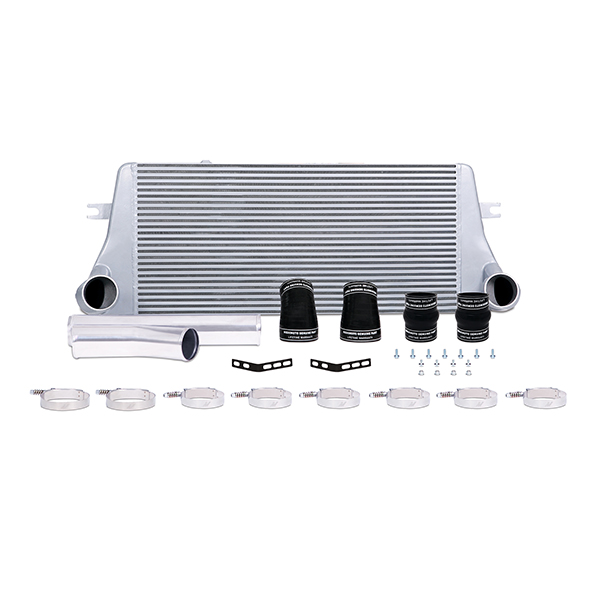

Purchase Includes
Mishimoto Intercooler
(2) Aluminum Intercooler Pipes
(4) Silicone Boots with DuraCore™ Technology
(8) Constant-Tension T-Bolt Clamps
(2) Aluminum Mishimoto "M" Logo Badges
(2) AC Condenser Brackets
(7) M6 x 1.0 x 16mm Bolts
(4) M6 x 1.0 x 10mm Bolts & Washers
Mishimoto Lifetime Warranty

Note
Requires slight bending of truck body for installation.

Installation Torque Specs
27 in-lbs (3N*M) recommended for all t-bolt and constant tension t-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4N*M). Do not exceed the maximum torque rating of 35 in-lbs (4N*M).

PRODUCT ENGINEERING


DESCRIPTIONMishimoto has released a performance intercooler kit for the 1994–2002 Dodge 5.9L Cummins. High intake and exhaust gas temperatures can reduce performance and potentially cause engine damage. Protect your 12v or 24v by upgrading to the Mishimoto 5.9L Cummins intercooler kit. This intercooler is precision engineered with durable cast aluminum end tanks and an efficient bar-and-plate core, all designed for improved airflow, lower intake temperatures, and improved EGTs. The Mishimoto Cummins intercooler will support substantial boost pressure in your stock or highly modified truck.

The Mishimoto Cummins intercooler features a 47% increase in core volume and is 50% thicker compared to the factory cooler. This kit also includes 3" mandrel bent polished aluminum pipes and Mishimoto DuraCore™ boots and constant-tension T-bolt clamps. Compared to normal silicone, DuraCore™ provides superior resistance to heat, pressure, fuel, and oil. This effectively increases the life of our boots by preventing leaks and blowouts. The Mishimoto 5.9L Cummins intercooler kit is offered in Sleek Silver or Stealth Black. Like all of our Dodge Ram performance parts, this intercooler kit come with the Mishimoto Lifetime Warranty.

LIFETIME WARRANTY


Mishimoto Automotive (“Mishimoto”) warrants its products under this lifetime limited warranty policy (“Warranty Policy”). This Warranty Policy applies solely to: (i) Mishimoto Products purchased directly from Mishimoto or Mishimoto authorized dealers (each a “Mishimoto Product” and collectively, the “Mishimoto Products”) and (ii) the original purchaser of such Mishimoto Product (“Purchaser”). This Warranty Policy is non-transferable and all claims under this Warranty Policy must be accompanied by the original sales receipt. The terms and conditions of this Warranty Policy are subject to change by Mishimoto at any time without notice.

For our complete warranty policy, please click here.


Direct fit for 12v and 24v 1994–2002 Dodge 5.9L Cummins
Includes hot-side and cold-side intercooler pipes and boots
Intercooler features all-aluminum cast end tanks
3" mandrel-bent polished aluminum piping
Intercooler has 47% increase in core volume
3" core is 50% thicker than factory
Air diverter in hot-side end tank reduces turbulence and evenly distributes airflow across core
Reduces turbo stress and extends life
Intercooler available in Sleek Silver and Stealth Black
Fits with Mishimoto Dodge 5.9L Cummins Performance Aluminum Radiator
Includes Mishimoto Silicone Boots with DuraCore™ technology and Mishimoto Constant-Tension T-bolt Clamps
Mishimoto Lifetime Warranty
