TECH SPECS



Mishimoto is the world leader in performance cooling for the Automotive, Truck, Jeep, and Powersports communities. Watch to learn about everything we do and who we are!

Purchase Includes
(1) Application Specific Mounting Bracket
(1) Black, Anodized 6061 Aluminum Catch Can
(2) Direct-Fit Hoses
(2) Plastic Barbed Fittings
(4) Worm-Gear Clamps
(1) Air Diverter
(1) Internal Baffle & Rod
(1) 3/8" NPT Plug
(1) Large O-Ring
Mounting Hardware
Mishimoto Lifetime Warranty

Fits
13+ Ford Focus ST

Installation Torque Specs
22 in-lbs (2.5N*M) recommended for all worm-gear clamps. These clamps have an operating range of 18-27 in-lbs 2-3N*M. Do not exceed the maximum torque rating of 27 in-lbs (3N*M).Engine Codes
2.0L EcoBoost

Chassis Codes
C-Car Platform

Note
After installation, Mishimoto recommends checking the contents of the baffled catch cans every 500 miles until a baseline is established. Oil blow-by accumulation will vary with ambient temperatures and driving conditions. It is important that the contents of the can do not rise above the internal baffle.
The engine’s intake manifold needs to be removed to install this product, please reference our installation video for an easy step-by-step process on how to successfully remove and reinstall the intake manifold.

PRODUCT ENGINEERING


DESCRIPTIONThe Mishimoto Focus ST Baffled Oil Catch Can is designed and engineered to reduce carbon buildup, a common issue with direct fuel injection engines. Mishimoto engineers found that most vehicles, placing the catch can in the vacuum assisted PCV system of the vehicle will yield the most amount of oil accumulation during normal and aggressive driving. Where a catch can placed on the crankcase vent system on the left side of the engine will yield very little accumulation on stock or lightly modified vehicles. Having only one catch can, tied into the PCV system will, by far, work the best for the vast majority of Ford Focus STs on the road.

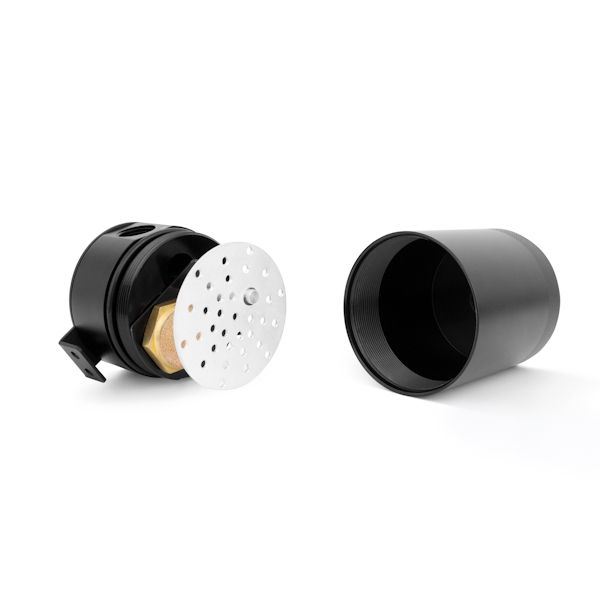

The Mishimoto Focus ST catch can kit uses the Mishimoto 2-Port Compact Baffled Oil Catch Can with a bronze filter, and internal baffled to better separate the oil from the crankcase vapors. The kit comes with two direct-fit silicone hoses that connect the catch can with the crankcase and intake manifold. It also includes one direct fit mounting bracket that not only is extremely easy to install but also mounts the can in a serviceable location, right next to the engine’s oil drain plug! Two plastic, 3/8” barb fittings connect the hoses to the can. Like all of our products, this baffled catch can kit comes with the Mishimoto Lifetime Warranty!

LIFETIME WARRANTY


Mishimoto Automotive (“Mishimoto”) warrants its products under this lifetime limited warranty policy (“Warranty Policy”). This Warranty Policy applies solely to: (i) Mishimoto Products purchased directly from Mishimoto or Mishimoto authorized dealers (each a “Mishimoto Product” and collectively, the “Mishimoto Products”) and (ii) the original purchaser of such Mishimoto Product (“Purchaser”). This Warranty Policy is non-transferable and all claims under this Warranty Policy must be accompanied by the original sales receipt. The terms and conditions of this Warranty Policy are subject to change by Mishimoto at any time without notice.

For our complete warranty policy, please click here.


Single can mounting inline with the PCV system separates oil particles using 50 micron bronze filter
Application specific bracket mounts the can in a serviceable location underneath the vehicle
EPDM rubber hoses come pre-molded for a reliable install
Catch can located in convenient location next to the transmission, can be serviced during every oil change
Billet 6061 aluminum sealed can
Defends intercooler, intake system, and essential components from oil blow-by
Helps reduce carbon build-up on the intake valves
Helps maintain proper octane levels to reduce potential detonation
Filters and can are fully serviceable
Internal air diverter turbulates air longer to improve oil separation
Mishimoto Lifetime Warranty
