Robotic TIG-welding
Brushed aluminum finish
Includes magnetic drain plug with dowty seal
Direct fit for the 1996-2000 Mitsubishi Lancer Evolution
Includes 1.3 bar high-pressure radiator cap
Includes 1/8” NPT port for use with additional temperature sensors
Lifetime Warranty

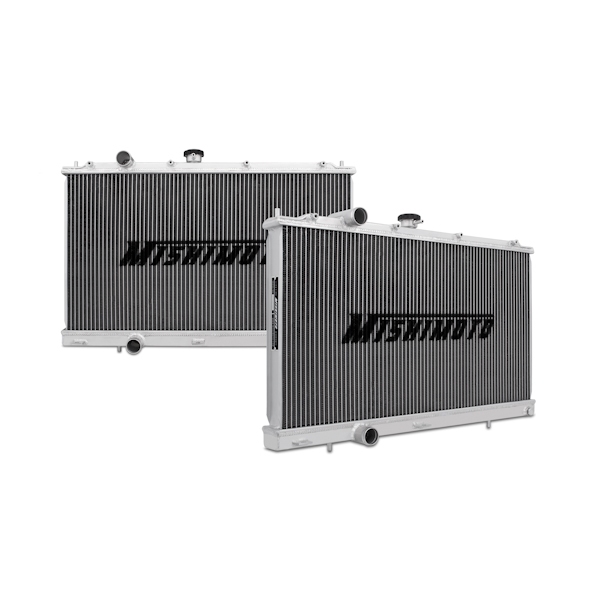

DESCRIPTIONThe Mitsubishi Lancer Evolution provides an abundance of driver enjoyment thanks to its turbocharged engine and durable AWD system. Traversing extreme terrain is no problem with this rally-inspired 4-door sedan. Competitive driving and extreme environments demand a cooling system that can provide reliability and optimum temperatures. The Mishimoto Lancer Evolution 4/5/6 Performance Aluminum Radiator provides durable all-aluminum construction and a high-efficiency brazed aluminum core that results in superior reduction of coolant temperatures. This radiator is precision engineered for flawless fitment in your Evo 4/5/6. Each radiator is robotically TIG-welded to ensure consistent and robust construction, from the end tanks to the inlet and outlet connections. The Mishimoto Lancer Evolution 4/5/6 Performance Aluminum Radiator includes the Mishimoto 1.3 Bar High-Pressure Radiator Cap, which effectively raises the boiling point of your coolant to create a safer and more efficient system. This radiator also includes a magnetic drain plug with dowty seal and durable threads for repeated installation and superior protection against leaks. This radiator features a 1/8” NPT port for use with additional coolant temperature sensors. Whether you are making passes at the strip or sliding around in the snow, the Mishimoto Performance Aluminum Radiator is ideal for keeping your Evolution on the road and out of the shop. As with all our products, this radiator includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.

Overall Size
28.1" x 19.3" x 2.55"

Core Size
14.80" x 27.24"

Rows
2

Inlet
1.4"

Outlet
1.4"

Core Thickness
2.05"

Tank Wall Thickness
.08"

Drain Plug Thread Size
(M16) .06"

Drain Plug Thread Length
.047"

Purchase Includes
Mishimoto Radiator
Mishimoto Radiator Cap
Magnetic Drain Plug
Mishimoto Lifetime Warranty

Fill Neck
1.25"

Engine Codes
4G63T

Chassis Code
CN9A (4)
CP9A (5/6)

Note
This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler.

Caution
It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact sales@mishimoto.com.
