Direct-fit kit for the Mitsubishi Lancer Evolution 7/8/9
Large, 3.5” thick bar-and-plate core with strategic core composition for optimal cooling and minimal pressure loss
Provided 8 whp / 10 wtq and reduced intake temperatures by 28°F (16°C) compared to the stock cooler on a vehicle making 350 whp
Provides efficient intake temperature reduction for vehicles from stock to 600 whp
All-aluminum cast end tanks provide improved airflow, superior air dispersion through the core, and exceptional strength
Lightweight, mandrel-bent, polished aluminum pipes eliminate restrictive bends in the stock piping for improved airflow
Bead-rolled pipe ends prevent boost leaks and coupler disconnection
Silicone couplers provide increased heat and pressure tolerance
Available with a Sleek Silver or Stealth Black powder-coated finish
Mishimoto Lifetime Warranty



TECH SPECS



Mishimoto is the world leader in performance cooling for the Automotive, Truck, Jeep, and Powersports communities. Watch to learn about everything we do and who we are!

Kit Fits
01–07 Lancer Evolution 7/8/9 GSR
05–07 Lancer Evolution 8/9 MR

Engine Code
4G63

Chassis Code
CT9A

Pipes Construction
Polished Aluminum

Upper Pipes Diameter
I.D. – 2.375”
O.D. – 2.50”

Upper Pipes Silicone Couplers
Coupler 1: I.D. – 2.83” / 2.44” / O.D. – 3.00” / 2.83”
Coupler 2: I.D. – 2.44” / O.D. – 2.83”
Coupler 3: I.D. – 2.44” / O.D. – 2.83”

Upper Pipes T-Bolt Clamps
5 – 2.75” T-bolt Clamps
1 – 3” T-bolt Clamp

Lower Pipe Diameter
I.D. – 2.375”
O.D. – 2.50”

Lower Pipe Silicone Couplers
Coupler 1: I.D. – 1.73” / 2.44” / O.D. – 2.125” / 2.83”
Coupler 2: I.D. – 2.44” / O.D. – 2.83”

Lower Pipe T-Bolt Clamps
3 – 2.75” T-bolt Clamps

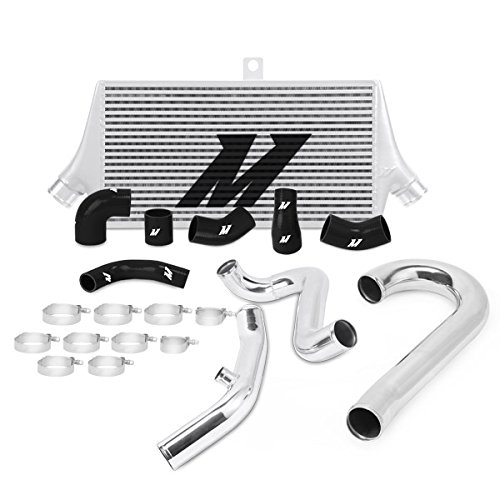

1 – 2” T-bolt ClampKit Purchase Includes
Mishimoto Intercooler
2 – Upper Intercooler Pipes
1 – Lower Intercooler Pipe
3 – Upper Pipe Couplers
2 – Lower Pipe Couplers
1 – 3” T-bolt Clamp
8 – 2.75” T-bolt Clamps
1 – 2” T-bolt Clamp
Mishimoto Lifetime Warranty

Cooler Construction
Bar-and-Plate with Cast End Tanks

Cooler Overall Size
31.5” x 14.5” x 5.75”

Cooler Core Size
22.0" x 11.65" x 3.5"

Cooler Weight
27 lbs (12.27 kg)

Cooler Inlet / Outlet
Inlet: 2.5” O.D. / 2.375” I.D.
Outlet: 2.5” O.D. / 2.375” I.D.

Cooler Fin Specs
External: 7.5 – 8.5 fins per inch
Internal: 7.5 fins per inch

Cooler Tank Wall Thickness
3.5mm

Note
This intercooler can be used with stock or aftermarket intercooler pipes. This intercooler is not universal and has application specific mounting points.

DESCRIPTIONMaximize the effect of your intercooler setup with the Mishimoto Mitsubishi Lancer Evolution 7/8/9 Intercooler Kit! This full kit includes the Mitsubishi Lancer Evolution 7/8/9 Race Intercooler, as well as the Mitsubishi Lancer Evolution 7/8/9 Intercooler Pipe Kit. This kit provides a direct-fit unit and completely replaces the restrictive and inefficient factory setup. The Mishimoto intercooler utilizes a large, 3.5” thick bar-and-plate core that has been designed with a strategic core composition to provide optimal reductions in intake temperatures and minimal pressure loss. This kit will support vehicles from stock to 600 whp! Our 350 whp test vehicle showed an 8 whp / 10 wtq increase in power compared to the stock intercooler, and the Mishimoto intercooler was able to reduce temperatures by 28°F (16°C). Not only was this intercooler kit designed with power and efficiency in mind, but our engineers also crafted smooth cast end tanks to promote proper air dispersion through the core, improved airflow, and exceptional durability. Low air intake temperatures are vital for maximum power output, tuning, and performance. Whether you are taking your Evo to the local rallycross or competing in a time-attack, lower temperatures will be beneficial. Mishimoto intercooler pipes are crafted from lightweight, mandrel-bent aluminum and eliminate restrictions in the factory piping, which allows for improved airflow and quicker turbocharger spool. The included silicone couplers provide improved heat and pressure tolerance and can handle all the boost you can throw at them. This kit is available with a Sleek Silver or Stealth Black powder-coated intercooler finish for enhanced durability and protection against road debris. As with all our products, the Mishimoto Evolution Race Intercooler Kit includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.
