TECH SPECS

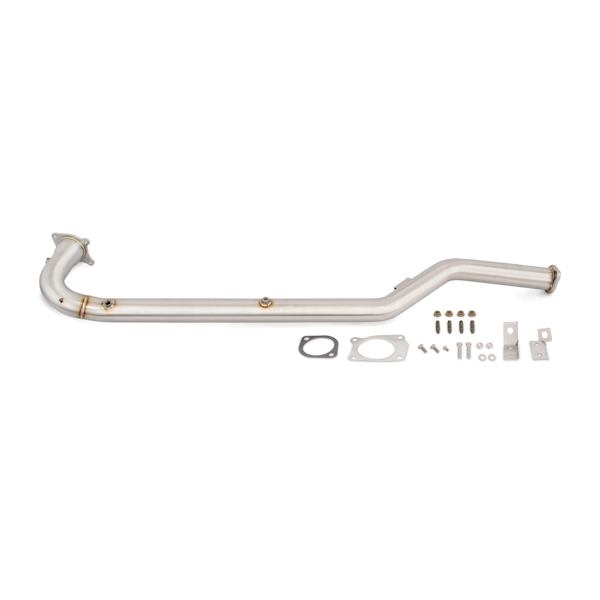

Mishimoto, the world leader in performance cooling products, introduces you to the Mishimoto performance downpipe for the 2015+ Subaru WRX. ...
Pipe Material
304 Stainless Steel
Flange Material
304 Stainless Steel
Diameter
3.5" at Turbo Flange
3.0" From First Bend to End of Pipe
Overall Size
65" x 12" x 5.5"
Weight
18 lbs (with cat)
Catalytic Converter Material
409 Stainless Steel
(only equipped on catted downpipe)
Chassis Codes
VA
Engine Codes
FA20DIT
Fits
15+ Subaru WRX
14+ Subaru Forester XT
Purchase Includes
(1) Stainless Steel Downpipe w/ 4-Bolt Turbo Flange and 2-Bolt Cat Flange
(1) Stainless Steel Transmission Bracket (Manual or CVT)
(1) High-flow Catalytic Converter (Optional)
(1) Additional M18 x 1.5 O2 Bung with Plug
(1) 4-Bolt Flange Gasket
(1) 2-Bolt Flange Gasket
(4) M10 x 1.25 Exhaust Studs
(2) M10 x 1.25 x 40mm Hex Bolts, Stainless Steel
(6) M10 x 1.25 Serrated Flange Nuts, Stainless Steel
(2) M10 x 1.25 x 16mm Hex Bolts (w/ 5mm Head Height), Stainless Steel
(4) M10 Washers, Stainless Steel
(2) M8 x 1.25 x 20mm Flange Bolts, Stainless Steel
(1) M6 x 1.0 x 10mm Flange Bolt, Stainless Steel
Mishimoto Lifetime Warranty
Note
This product has been designed to fit both manual and CVT transmission vehicles. Customers must select the correct transmission in the drop down menu to receive the correct bracket.Note
The downpipe cannot be used with the stock ECU programming. The customer must retune the vehicle's ECU after installing the downpipe.
We offer the Mishimoto Subaru WRX Tuning Kit, programmed specifically with Mishimoto products. Power gains will vary depending on the type of ECU tune that is applied to the vehicle.
The Mishimoto catless downpipe is for track and off-road use only. The customer must have a professional engine tune/calibration after installing the catless downpipe.
Customers installing the Mishimoto catted downpipe and Mishimoto EcuTek tune/calibration must remove the stock boost pill in the wastegate vacuum hose. The Mishimoto tune/calibration has been optimized to work with this combination and will prevent boost spikes. The hose which requires this modification is next to the wastegate actuator. The boost pill can be easily removed and replaced with a screwdriver or pliers. For additional technical information, please contact us.
Customers installing the Mishimoto catted downpipe and professional engine tune/calibration must consult with their tuner for recommendations on how to handle the boost pills.
The catalytic converter is manufactured using 409 grade automotive stainless steel. This particular grade of stainless has the tendency to form a protective layer of surface rust in wet/humid/snowy climates or when exposed to salted roads. This layer is superficial and will not penetrate the metal itself. It can be removed using soap and water and a steel Brillo or S.O.S pad. In the rare event that 409 stainless steel pipes become rusted through, Mishimoto’s lifetime warranty will cover replacement.
PRODUCT ENGINEERING
INSTALLATION
Mishimoto, the world leader in performance cooling products, shows you how to install the Mishimoto performance downpipe for the 2015+ Subaru WRX. Features include: Di...
LIFESTYLE
Check out the latest in development progress from the team at Mishimoto! INCLUDES SOUND CLIP!
DESCRIPTIONMishimoto is proud to release the performance Subaru WRX downpipe for the 2015+ models. The biggest restriction in the stock exhaust system is the downpipe. By installing the Mishimoto WRX downpipe, the FA20DIT exhaust system is able to breathe easier, providing a significant increase in horsepower and torque when tuned. During countless dyno pulls, Mishimoto saw gains of up to 73 whp and 64 wtq with the catted downpipe, Mishimoto Subaru WRX Tuning Kit, and Mishimoto Subaru WRX Performance Air Intake using 93 octane fuel on the 6-speed WRX (see additional images for dyno chart). With the catted downpipe and Mishimoto Subaru WRX Tuning Kit, Mishimoto saw dyno proven gains of up to 57 whp and 52 wtq using 93 octane fuel on the 6-speed WRX (see additional images for dyno chart). Above all, this downpipe provides a significant torque improvement in the low end and across the entire power band. The Mishimoto 2015 WRX downpipe provided an extremely aggressive turbo and exhaust tone under acceleration and boost, giving you that aggressive tone you have been looking for!
The engineers at Mishimoto designed the WRX downpipe as a one-piece design with precision TIG-welded 304 stainless steel. This allows uninterrupted exhaust flow from the 3.5" 4-bolt exhaust flange all the way through the 3.0" downpipe. The engineers also created two different transmission-specific brackets, for the 6-speed manual and CVT, to mount the downpipe to the transmission. To customize the WRX downpipe even further, it is offered in either a catted or catless version. Because the engineers know that WRX owners commonly like to add wideband O2 gauges, they included an additional O2 sensor bung and plug in an ideal location for aftermarket wideband sensors! To top it off, the 2015 WRX downpipe includes new turbine housing studs and nuts (which commonly strip), a new turbo outlet gasket, a new 3” 2-bolt flange gasket, and all stainless steel hardware, so you don’t have to worry about rust on your hardware. The Mishimoto Subaru WRX Downpipe is proudly made in the USA and comes with the Mishimoto Lifetime Warranty you know and trust.
LIFETIME WARRANTY
Mishimoto Automotive (“Mishimoto”) warrants its products under this lifetime limited warranty policy (“Warranty Policy”). This Warranty Policy applies solely to: (i) Mishimoto Products purchased directly from Mishimoto or Mishimoto authorized dealers (each a “Mishimoto Product” and collectively, the “Mishimoto Products”) and (ii) the original purchaser of such Mishimoto Product (“Purchaser”). This Warranty Policy is non-transferable and all claims under this Warranty Policy must be accompanied by the original sales receipt. The terms and conditions of this Warranty Policy are subject to change by Mishimoto at any time without notice.
For our complete warranty policy, please click here.
Direct fit for the 2015+ Subaru WRX and 2014+ Subaru Forester XT
Dyno-proven gains of up to 57 whp and 52 wtq with catted downpipe and Mishimoto Subaru WRX Tuning Kit, using 93 octane fuel on 6-speed WRX (see additional images for dyno chart)
Dyno-proven gains of up to 73 whp and 64 wtq with catted downpipe, Mishimoto Subaru WRX Tuning Kit, and Mishimoto Subaru WRX Performance Air Intake, using 93 octane fuel on 6-speed WRX (see additional images for dyno chart)
Significant torque improvement in the low end and across the entire power band
Fits with both CVT and manual transmissions
Extremely aggressive turbo and exhaust tone under acceleration and boost
304 stainless steel one-piece design allows for uninterrupted exhaust flow
3/8" thick stainless steel, CNC-machined four-bolt flange
3.5" to 3.0" transition out of turbo outlet allows exhaust gas to flow smoothly
Additional wideband oxygen-sensor bung and plug-in ideal location for aftermarket wideband sensors
Mates with the stock cat-back exhaust
New studs for turbine housing
High-flow catalytic converter (optional)
Includes stock gasket for turbo outlet
Made in the USA
Mishimoto Lifetime Warrant
|
