Provides Dramatic Temperature Drop
2 psi pressure loss
Direct fit for the ‘06-07 WRX/STI
Thermostatic option available
Stealth black and sleek silver cooler options
ThermaShield protective wrap included
Lifetime Warranty



TECH SPECS



Mishimoto, the world leader in performance cooling products, proudly introduces the Mishimoto Direct Fit Oil Cooler Kit for the 2006-2007 Subaru WRX & STi! The engineers ...

Increase in Oil Capacity
0.65 Quarts (0.613L)

Pressure Drop
2 psi

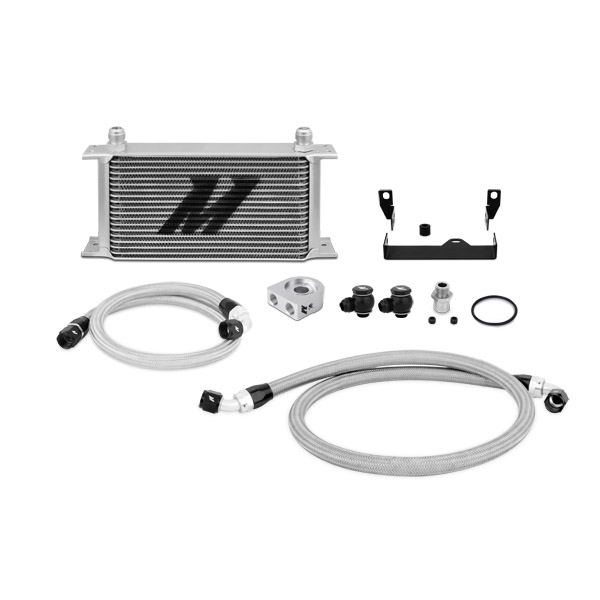

Purchase Includes
(3) - Application Specific Mounting Brackets
(1) - 19 Row Oil Cooler
(1) - 2ft 2in Stainless Steel Braided Hose w/ -10AN Fittings
(1) - 2ft 8in Stainless Steel Braided Hose w/ -10AN Fittings
(1) - Oil Sandwich Plate (Thermostatic Plate as Option in Drop Down)
(1) - Stainless Steel Sandwich Plate Adapter, M20
(2) - Banjo Fitting w/ Bolt M20 x -10AN, Black
(1) – 2’ Thermashield Silver Braided Line Protector
(1) - Black Rubber Protector Square
(1) - Mounting Hardware Set
Lifetime Warranty

INSTALLATION TORQUE SPECS
15-25 ft/lbs (operating range) for all straight fittings and banjo bolts. Do not exceed the maximum torque rating of 35 ft/lbs.Fits
2006-2007 Subaru WRX
2006-2007 Subaru STI

Engine Codes
EJ255
EJ257

Chassis Codes
GD

Note
Will not fit on vehicles equipped with front mount intercoolers.
Fits automatic and manual applications.

Caution
It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact sales@mishimoto.com

INSTALLATION



Mishimoto, the world leader in performance cooling products, shows you how to install the Mishimoto Direct Fit Oil Cooler Kit for the 2006-2007 Subaru WRX & STi! The engi...


DESCRIPTIONKeep your Hawkeye cool on the street or track with the all-new Mishimoto direct-fit oil cooler kit. A high horsepower Subaru needs a reliable and efficient means of reducing and maintaining proper oil temperatures. High engine temperatures can result in rapid oil degradation and potential engine damage. The Mishimoto oil cooler kit features a large 19-row oil cooler mounted behind the front bumper and grill for optimum airflow and cooling efficiency. This oil cooler kit adds .65 qt to the total oil capacity and substantially reduces temperatures with minimal pressure loss. The Mishimoto direct-fit oil cooler kit is available with a thermostatic sandwich plate for additional oil temperature control, and your choice of a stealth black or silver cooler. As with all our products, this kit includes the Mishimoto lifetime warranty.

Back side of oil cooler (visible when installed) does not have Mishimoto logo. Please see the installation video below.
